詳細規格及用途描述

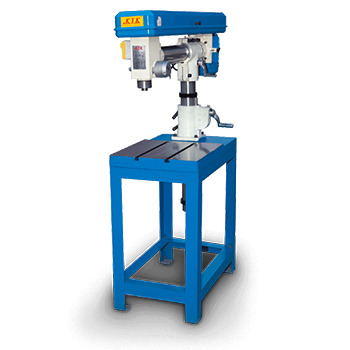

| Model | RDP-20B |
|---|---|
| Function | Radial Arm |
| Max. Drilling Capacity | 16mm |
| Spindle Taper | MT2 |
| Spindle Travel | 80mm |
| Quill Feed | |
| Spindle Speed | 190-2600 |
| Number of Speed | 9 |
| Swing | - |
| Column Diameter | |
| Table Diameter | 450x460mm |
| Base Diameter | 450x850mm |
| Spindle to Table Distance | |
| Spindle to Base Distance | |
| Motor | 0.75kw |
| Overall Height | 1850mm |
| Weight | 95kg |
