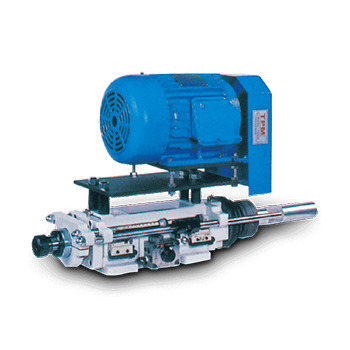

Hydraulic Drilling Unit

  • 型號:H-7150H
詳細規格及用途描述

ModelH-570HH-5100HH-6150HH-7130HH-7150HH-8130HH-9150HH-12150H
Capacity10mm10mm16mm25mm25mm30mm35mm50mm
Total Stroke70mm100mm150mm130mm150mm130mm150mm150mm
Braking Stroke70mm100mm150mm130mm150mm130mm150mm150mm
Speed Range1000-2000-30001000-2000-30001000-1500-2000300-1500 (optional)300-1500 (optional)300-1500 (optional)300-1500 (optional)50-1200 (optional)
Motor0.75kw1.5kw1.5kw1.5kw2.25kw2.25kw3.75kw
Tool HolderER20 / JT6ER25 / MT2ER25 / MT2ER32 / MT3ER40 / MT4MT4 / NT40MT4 / NT50
Weight38kgs45kgs62kgs105kgs105kgs125kgs125kgs285kgs
